Commercial Emergency Generator Replacement in Ontario: Load Study, ATS, Fuel, Ventilation & Permit Coordination
Replacing an aging standby generator is not a one-for-one equipment purchase. The new system must serve the right loads, work with the transfer and distribution equipment, fit the fuel and ventilation infrastructure, satisfy current project requirements and be installed without exposing the building to an unmanaged outage.
The old generator nameplate does not prove the present emergency-load, motor-starting or future-capacity requirement.
Generator, ATS, grounding, distribution, fuel, ventilation, exhaust and controls must operate as one emergency-power system.
Temporary power, switching, removal access and commissioning can control project risk more than the equipment purchase.

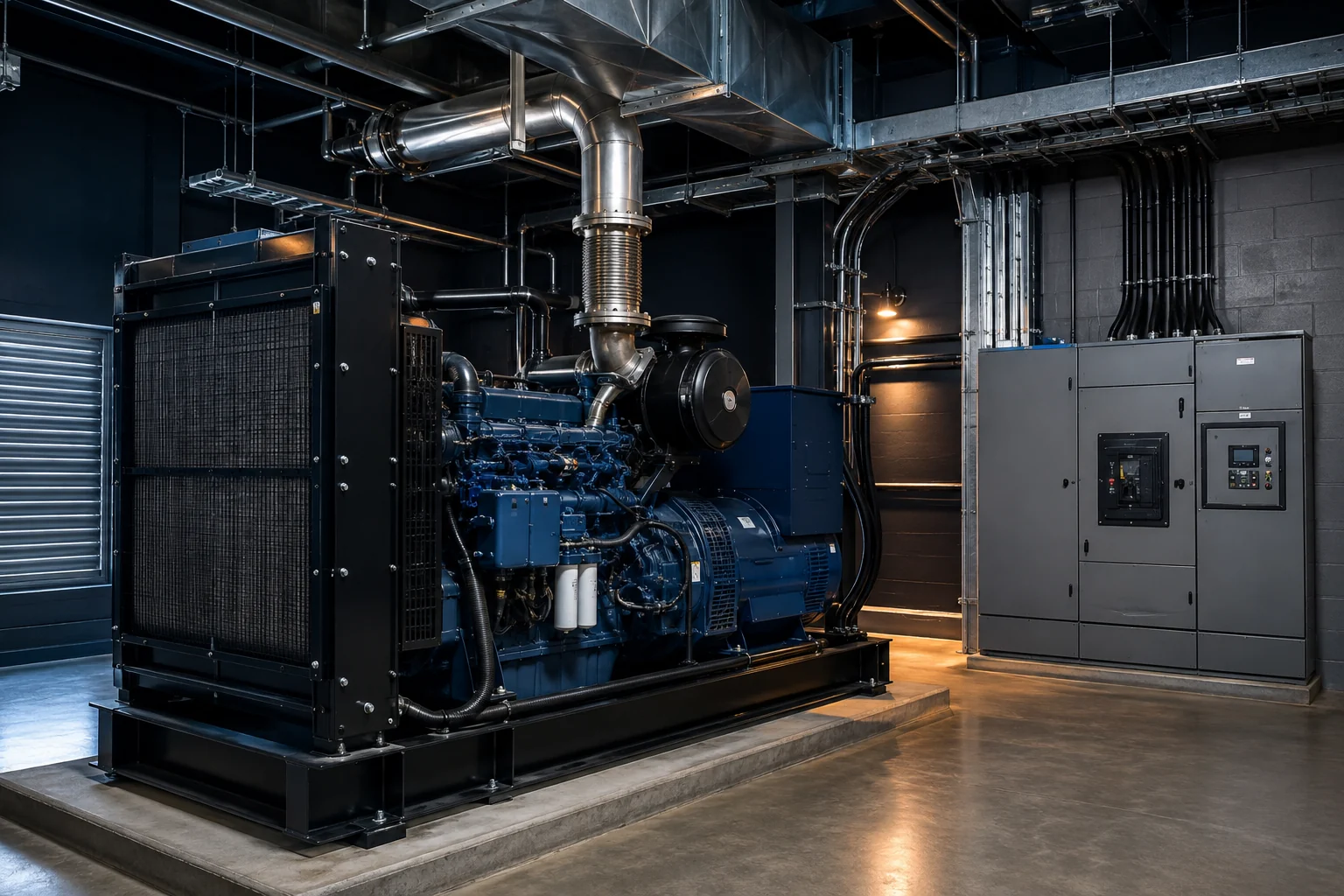

Why Generator Replacement Is a System Project
A commercial emergency generator may reach replacement because of age, unreliable starting, emissions or fuel-system concerns, unavailable parts, insufficient capacity, a failed enclosure, repeated test deficiencies or a building renovation. Whatever triggers the project, the generator set is only one part of the system. Transfer switches, emergency distribution, controls, batteries, chargers, fuel, ventilation, exhaust, grounding and the loads themselves determine whether power will be available when required.
A direct nameplate-for-nameplate purchase can reproduce existing deficiencies or create new incompatibilities. A newer generator may have different fault-current contribution, starting characteristics, control voltage, heat rejection, airflow, exhaust connection, dimensions and weight. A changed alternator or neutral arrangement can affect protection and grounding. Even when the required kW is unchanged, the replacement design may not be.
Determine which loads and operating functions are required by the building, fire and electrical requirements applicable to the project.
Use maintenance, testing and failure records to distinguish a generator problem from a transfer, fuel, battery or distribution problem.
Identify operational loads, acceptable downtime, future growth and the consequences of each proposed outage.
Begin by defining the owner’s objective and the building’s actual emergency-power obligations. A life-safety system, a sump pump, a fire pump, an elevator, critical controls and business-continuity loads do not necessarily have the same priority, starting behaviour or transfer sequence. A clear load schedule prevents optional demand from obscuring the functions that must operate first.
Assess the Existing Installation Before Selecting Equipment
The existing system should be documented while it can still be safely operated and tested. Record generator and alternator ratings, voltage, phase, frequency, breaker size, grounding and neutral arrangement, starting batteries, charger, block heater, controls, annunciation, fuel system, exhaust, radiator or remote cooling, room airflow and enclosure condition. Trace the normal and emergency sources through each automatic transfer switch and emergency distribution section.
Available single-line diagrams may not match field conditions. Reconcile drawings with nameplates, test reports and a qualified field review. Review connected load, recent additions, nuisance alarms, transfer-test performance, fuel quality and consumption, leakage, corrosion, overheating, recurring battery failures and maintenance recommendations. Where the existing generator still runs, monitored testing can provide valuable evidence—but testing must be planned by qualified parties and must not compromise required building systems.
Opening energized equipment, operating transfer switches or simulating utility failure can expose people and the building to serious risk. Establish permissions, roles, communications and restoration steps before intrusive investigation or testing.
Define Loads, Starting and Future Capacity
Generator selection starts with a circuit-by-circuit understanding of the loads that will be energized. Separate continuous and intermittent demand; identify motors, drives, transformers, UPS systems, fire alarm, lighting, heating, elevators, pumps and controls; and determine which loads start together. Nameplate kW is only one input. Alternator kVA, power factor, motor-starting voltage dip, frequency recovery, harmonic load, ambient conditions and the permitted load sequence can govern the selection.
Develop a step-loading sequence that reflects how the building will actually recover after loss of normal power. Starting a large motor before smaller critical loads may produce a different generator requirement than intentional staging. Conversely, oversizing without considering minimum loading and operating profile can create poor long-term operation. Confirm the proposed duty and transient performance with manufacturer data for the selected generator configuration.
| Design question | Evidence to review | Why it matters |
|---|---|---|
| What must operate? | Code-required functions, owner priorities, emergency panels and transfer-switch load lists | Defines the defensible emergency-load schedule |
| What starts first? | Motor data, controls, ATS timing and sequence of operation | Can govern transient voltage and frequency performance |
| What has changed? | Renovations, added equipment, metering, test records and future plans | Prevents repeating an obsolete selection |
| What can be staged or shed? | Operational priorities and control interfaces | May improve reliability without carrying every load simultaneously |
For a deeper technical discussion, see our guide to generator sizing and step-loading. The replacement project should turn those calculations into a coordinated equipment, switching and construction plan.
ATS, Distribution, Grounding and Protection
Each automatic transfer switch should be assessed rather than automatically retained or replaced. Review rating, condition, service history, short-circuit withstand capability, bypass/isolation needs, transfer mode, number of poles, neutral switching, controller functions, source sensing, exercise settings, communications and compatibility with the proposed generator. A control retrofit may be feasible in one building; complete replacement may be the prudent option in another.
Confirm that generator voltage and phase suit the emergency distribution. Review the generator breaker, feeders, conductors, raceways, emergency panels and downstream equipment. Available fault current, protective-device settings and selective operation should be evaluated for the revised source. Grounding and bonding must be coordinated with the transfer arrangement and neutral treatment; copying the existing conductors without understanding the system can create objectionable current paths or an ineffective fault-return path.
Transfer controls also interact with mechanical equipment, fire alarm, elevators, building automation, fire pumps and load-management systems. Define dry contacts, network interfaces, remote annunciation, permissives, delays and reset behaviour in the sequence. Our automatic transfer switch design guide provides additional background on transfer modes and application decisions.
A switch that transfers during a basic exercise may still be unsuitable for the proposed source, fault duty, neutral arrangement or operational continuity requirement. Document why it is being retained.
Fuel, Ventilation, Exhaust and Location
Indoor generator replacement requires a coordinated mechanical review. The room must supply combustion and radiator airflow, reject generator heat, route exhaust safely and maintain conditions acceptable to the equipment. A larger radiator or different discharge arrangement can require louvre, duct or damper changes. Poor separation between intake and discharge can recirculate hot air and reduce available generator output.
Review exhaust routing, insulation, supports, flexible connections, backpressure, condensate management, clearances, penetrations and termination location. Confirm whether existing silencers and piping are compatible with the new engine and current project requirements. For outdoor sets, coordinate enclosure airflow, snow and wind exposure, service clearances, noise, exhaust dispersion, structural support and protection from vehicles or site activity.
The fuel scope depends on the energy source and installation. Document tanks, day tanks, pumps, piping, vents, leak detection, containment, valves, regulators and monitoring. Confirm the required operating duration for the actual building and system rather than assuming a universal number. Fuel work in Ontario should be coordinated with the appropriately registered contractor and certificated personnel, and project-specific TSSA requirements should be confirmed.
Combustion air, radiator discharge, room temperature and recirculation must be checked using the proposed set’s data.
Capacity, condition, piping, controls, containment and qualified installation affect both reliability and approvals.
Backpressure, termination, vibration, sound and nearby openings require site-specific coordination.
Codes, Permits and Engineering Documentation
The applicable approval path depends on the building, generator rating, fuel system, location and extent of construction. Electrical work is subject to ESA notification and inspection requirements. ESA’s Electrical Plan Review program identifies thresholds for certain services, feeders, standby generation and emergency power for life-safety systems; confirm whether plan review applies to the actual project. ESA also identifies the single-line diagram as a core submission document.
Building, mechanical, structural, fire-protection, environmental, noise or site approvals may apply depending on the installation and municipality. Ontario’s current Building Code and Fire Code reference emergency-power provisions and standards including CSA C282 in applicable situations. The project team should verify the current editions, adopted requirements and authority interpretations rather than relying on an old drawing or a generic checklist.
Coordinated documentation may include a single-line diagram, load schedule, generator and ATS schedules, grounding and bonding details, feeder and protection requirements, room or site layout, ventilation and exhaust details, fuel-system interfaces, structural information, controls and annunciation, demolition, temporary-power notes, sequences and commissioning requirements. The scope should reflect what is changing—not merely show a generator symbol.
Outage Planning, Construction and Commissioning
Emergency-power replacement often occurs in an occupied building that cannot simply lose backup capability for several weeks. Define the acceptable risk window early. The solution may involve a planned normal-power outage, a temporary generator, temporary feeders, staged ATS work, temporary fuel arrangements or a carefully sequenced period with reduced redundancy. Temporary systems also require engineering, protection, connection and operating procedures appropriate to their role.
Confirm removal and delivery routes, crane or rigging requirements, floor and housekeeping-pad capacity, wall or roof openings, hazardous materials, weather protection, storage, fuel removal, disposal and the sequence for reinstating fire separations and finishes. Submittal review should confirm electrical and mechanical data together; late discovery of a different radiator airflow or breaker arrangement can disrupt the entire installation.
- Define the basis of design. Document required loads, sequence, capacity, redundancy, existing equipment to remain and the project’s compliance path.
- Coordinate the replacement. Resolve generator, ATS, distribution, grounding, fuel, airflow, exhaust, controls, structure, access and temporary-service requirements.
- Plan and execute the outage. Establish responsibilities, notifications, temporary measures, switching, shutdown, removal, installation and restoration steps.
- Commission the complete system. Verify start, transfer, load acceptance, staged operation, alarms, ventilation, fuel, retransfer, cooldown and agreed failure scenarios—not only engine operation.
Closeout should capture final settings, test results, record drawings, operating instructions, maintenance information and owner training. Future periodic testing can only be interpreted properly when the intended sequence, loads and acceptance criteria are documented.
Information to Gather Before Design
An initial discussion does not require a perfect record set. Send available information, distinguish verified facts from assumptions and identify the investigation needed before procurement.
- Property address, building use and occupancy
- Generator and alternator nameplates
- ATS nameplates, ratings and quantities
- Electrical single-line diagrams and panel schedules
- Emergency-load list and recent load additions
- Generator test and maintenance records
- Known failures, alarms or inspection deficiencies
- Fuel type, tank and piping information
- Room, enclosure, louvre and exhaust photos
- Available mechanical and structural drawings
- Future loads or planned renovations
- Target schedule and acceptable outage windows
Long equipment lead times create pressure to order early, but an incomplete generator or ATS selection can lock the project into the wrong voltage, capacity, switching, airflow or physical arrangement.
ETEM provides coordinated electrical engineering services and mechanical engineering services for commercial, institutional, municipal and multi-residential projects across Ontario. Scope and deliverables are defined for the actual building, approval path and construction stage.
Frequently Asked Questions
Can a commercial emergency generator be replaced with the same kW rating?
Not without confirming the present loads, motor-starting and step-loading requirements, transfer sequence, building changes and future demand. The existing nameplate is an important reference, but it is not a current load study.
Does the existing automatic transfer switch need to be replaced with the generator?
Not always. Its condition, rating, withstand capability, transfer arrangement, neutral switching, controls, listing and compatibility with the proposed generator must be reviewed before it is retained.
Does a commercial generator replacement require ESA plan review?
ESA plan review requirements depend on the electrical installation and rating. ESA identifies specific service, feeder, standby-generation and life-safety thresholds. The project team should confirm the current requirements with ESA for the actual installation.
What mechanical engineering is involved in a generator replacement?
Mechanical coordination may include combustion and radiator airflow, room ventilation, engine exhaust, fuel systems, heat rejection, drainage, acoustic considerations and penetrations. The required scope depends on whether the generator is indoors, outdoors or in an enclosure.
Can the building remain operational during generator replacement?
Often, but the approach must be planned. Work may require outages, temporary generation, staged transfer-switch work or temporary controls. The acceptable continuity plan depends on the building, the loads served and the available switching arrangement.
What should I send ETEM for an initial generator-replacement review?
Send the property address, building use, generator and transfer-switch nameplates, single-line diagrams, load information, test and maintenance records, known deficiencies, photos, future-load plans and the target outage or replacement schedule.
Official Sources and Further Reading
This is an engineering planning guide, not a site-specific design or regulatory determination. Confirm current ESA, municipal, Building Code, Fire Code, TSSA and utility requirements for the actual installation. Official guidance reviewed September 4, 2026:
