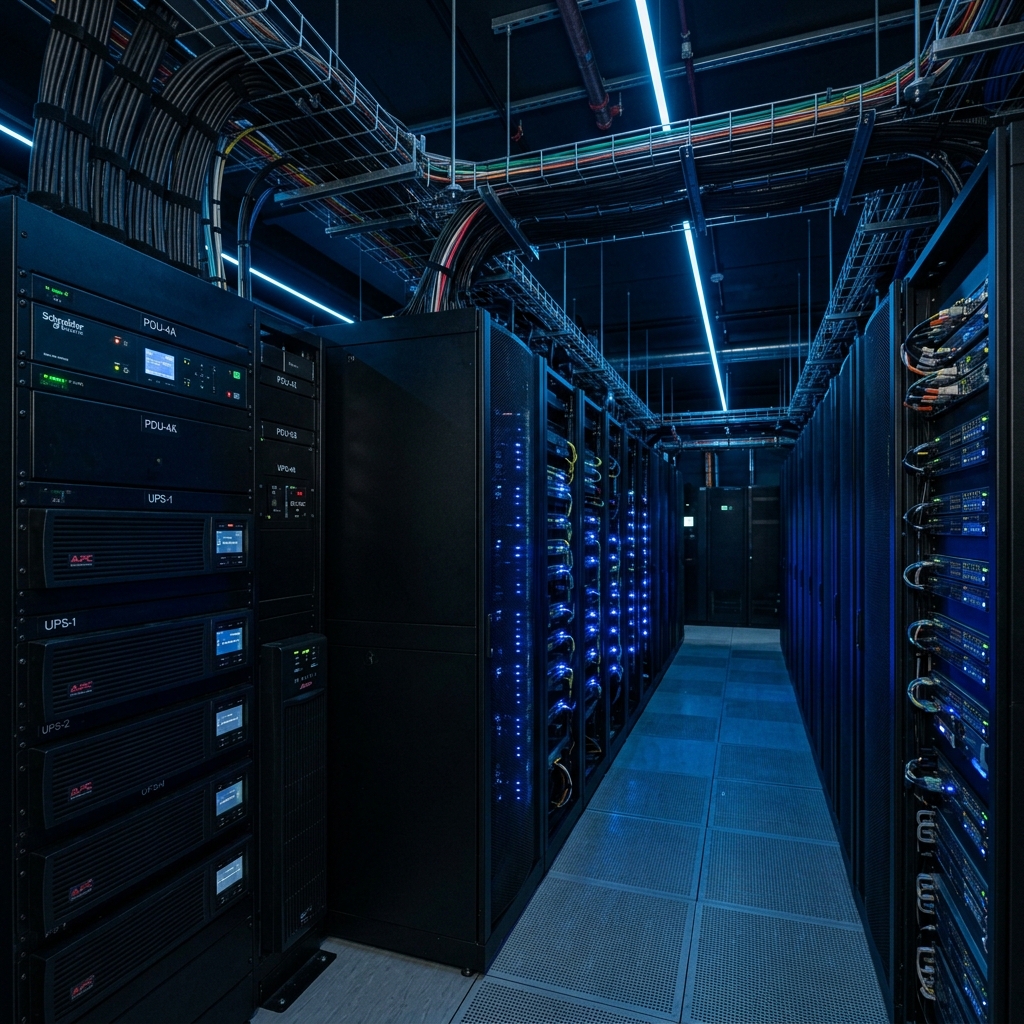

Tier III Data Center Electrical Design: UPS Topology, Power Distribution & PUE

Section through a data centre: utility pad-mount transformer and generator outside, the switchboard and transfer switch, a UPS line-up with redundant modules and batteries, and a data hall with floor PDUs and dual-corded server racks.

When a significant outage can cost over $1 million (Uptime Institute, 2025), the electrical design isn't just engineering - it's risk management. Here's how Tier III data center architectures achieve concurrently maintainable power systems. The 99.982% availability (less than 1.6 hours of downtime per year) often quoted for Tier III is a commonly cited figure, not part of the Uptime Institute Tier Standard.

Understanding Tier Classifications

The Uptime Institute's Tier Standard defines four levels of data center infrastructure reliability. Each tier builds on the one below it, adding redundancy and fault tolerance. The availability rows below are indicative only, not part of the Tier definitions or a guarantee; the electrical engineer's job is to translate reliability targets into concrete power distribution architectures.

Parameter Tier I Tier II Tier III Tier IV
Availability99.671%99.741%99.982%99.995%
Annual Downtime28.8 hrs22.7 hrs1.6 hrs0.4 hrs
Power PathSingleSingle + redundantMultiple activeMultiple active
UPS RedundancyNN+1N+1 (dual bus)2N or 2(N+1)
Concurrently MaintainableNoNoYesYes
Fault TolerantNoNoNoYes
Typical ApplicationSmall businessSMB, branch officeEnterprise, cloudBanking, gov't
"Concurrently maintainable" means every component in the power and cooling path can be shut down for planned maintenance without affecting IT operations. This is the defining characteristic of Tier III - and the single biggest driver of electrical design complexity.

UPS Topology: The Heart of the Design

The Uninterruptible Power Supply is the centerpiece of data center electrical architecture. Three primary topologies are used in modern facilities:

Topology How It Works Efficiency Protection Level Best For
Standby (Offline)Switches to battery on failure95-98%BasicDesktop PCs, home office
Line-InteractiveVoltage regulation + battery95-97%ModerateNetwork closets, small servers
Double Conversion (Online)Continuous AC-DC-AC conversion90-96%MaximumData centers, mission-critical

For Tier III and above, double-conversion online UPS is the standard. The continuous conversion isolates the IT load from all utility power anomalies - sags, swells, harmonics, frequency variations, and transients are completely eliminated.

Power Distribution Architectures

N+1 vs. 2N: What's the Difference?

These terms describe how much redundancy exists in the power system:

  • N: The minimum capacity needed to run the full IT load - no redundancy
  • N+1: One extra module beyond minimum - if a 500 kVA load requires two 300 kVA UPS modules, you install three. Any single module can be taken offline for maintenance
  • 2N: Completely duplicated power path - two independent UPS systems, each capable of carrying the full load. The IT equipment has dual power supplies connected to separate buses
  • 2(N+1): Two complete systems, each with internal redundancy - the pinnacle of availability for Tier IV

Power paths in a concurrently maintainable data centre

A typical Tier III-style arrangement, not a specific facility. Paths shown schematically.

Power paths in a concurrently maintainable data centreSection through a data centre. Outside stand a utility pad-mount transformer and a generator in its enclosure. Inside, an electrical room holds the switchboard and the automatic transfer switch, fed by the utility and the generator. Next door a double-conversion UPS line-up with three power modules and a battery cabinet feeds two separate distribution paths, A in blue and B in orange, to two floor-standing PDUs at either end of a row of server racks. Each rack has two power cords, one from each path. A card explains N+1: a 500 kVA load needs two 300 kVA modules, so three are installed.N+1 UPS MODULESLoad 500 kVAN = 2 × 300 kVA modulesN+1 = install 3 × 300 kVAUTILITYGENERATORSWITCHBOARD · ATSUPS · BATTERIESDATA HALLPDU APDU B123456

Electrical points

  1. Utility supply: utility coordination is critical; a single AI cluster can require 5–20 MW.

  2. Generator and transfer: step-loading analysis is essential: GPU clusters have extreme inrush characteristics that affect generator and UPS sizing.

  3. Double-conversion UPS, N+1: continuous AC-DC-AC conversion isolates the IT load; one module more than the load needs, so any single module can be taken offline. Modules run most efficiently at 40–70 % load.

  4. A and B paths: multiple active power paths: every component can be shut down for planned maintenance without affecting IT operations (concurrently maintainable).

  5. Dual-corded racks: each server has two power supplies on separate paths; single-corded servers waste a redundant system. Traditional racks are 5–8 kW; AI racks 40–100+ kW.

  6. PDUs: branch-circuit metering at the PDU for capacity management; at AI densities busway replaces cable tray.

PUE = total facility power ÷ IT equipment power: 1.0 means all power goes to IT; the industry average is about 1.58.

  • Utility / normal feeder
  • Path A
  • Path B (and generator)
  • Power distribution unit
Figure 1. Redundant UPS modules and two independent distribution paths let any component be maintained while the IT load keeps running.Sources: Uptime Institute Tier Standard (concepts) · the article’s N+1 example

Figure 1. Power paths in a concurrently maintainable data centre

PUE: Measuring Efficiency

Power Usage Effectiveness (PUE) is the industry-standard metric for data center energy efficiency:

PUE Formula:

PUE = Total Facility Power / IT Equipment Power

A PUE of 1.0 means all power goes to IT. Industry average is ~1.58. Best-in-class hyperscalers achieve 1.1-1.2.

PUE Range Efficiency Rating Where You Typically See This
1.0-1.2ExceptionalHyperscale (Google, Meta), purpose-built facilities
1.2-1.4GoodModern colocation, well-designed enterprise
1.4-1.6AverageTypical enterprise, retrofitted facilities
1.6-2.0Below AverageLegacy facilities, poor cooling design
> 2.0InefficientConverted office space, no containment

The AI/HPC Power Density Challenge

Traditional data centers were designed for 5-8 kW per rack. AI training clusters running NVIDIA H100 or B200 GPUs now demand 40-100+ kW per rack. This fundamentally changes the electrical design:

  • Busway distribution replaces traditional cable trays - higher capacity in less space
  • Liquid cooling becomes mandatory - air cooling simply cannot handle 100 kW rack densities
  • Utility coordination is critical - a single AI cluster can require 5-20 MW, rivaling small industrial plants
  • Step-loading analysis is essential - GPU clusters have extreme inrush characteristics that affect generator and UPS sizing

Common Design Mistakes

  • Oversizing UPS for day-one load - UPS modules operate most efficiently at 40-70% load. Massive oversizing wastes energy 24/7
  • Ignoring harmonic distortion - IT switch-mode power supplies generate significant harmonics that derate transformers and cables
  • Single-corded servers on a 2N system - the most expensive power architecture is wasted if servers only have one power supply
  • No metering at the PDU level - you can't optimize what you don't measure. Branch circuit monitoring is essential for capacity management

Frequently Asked Questions

What is a Tier III data center?

N+1 redundancy, concurrently maintainable; 99.982% uptime is a commonly cited figure, not part of the Uptime Institute Tier Standard. Dual power paths, redundant UPS. See our ATS design guide.

What is PUE?

Power Usage Effectiveness = Total Power / IT Power. Industry avg: 1.58. Best-in-class: 1.1-1.2.

Best UPS for data centers?

Double-conversion online UPS. Zero transfer time, complete utility isolation. Modular for N+1 scaling.
