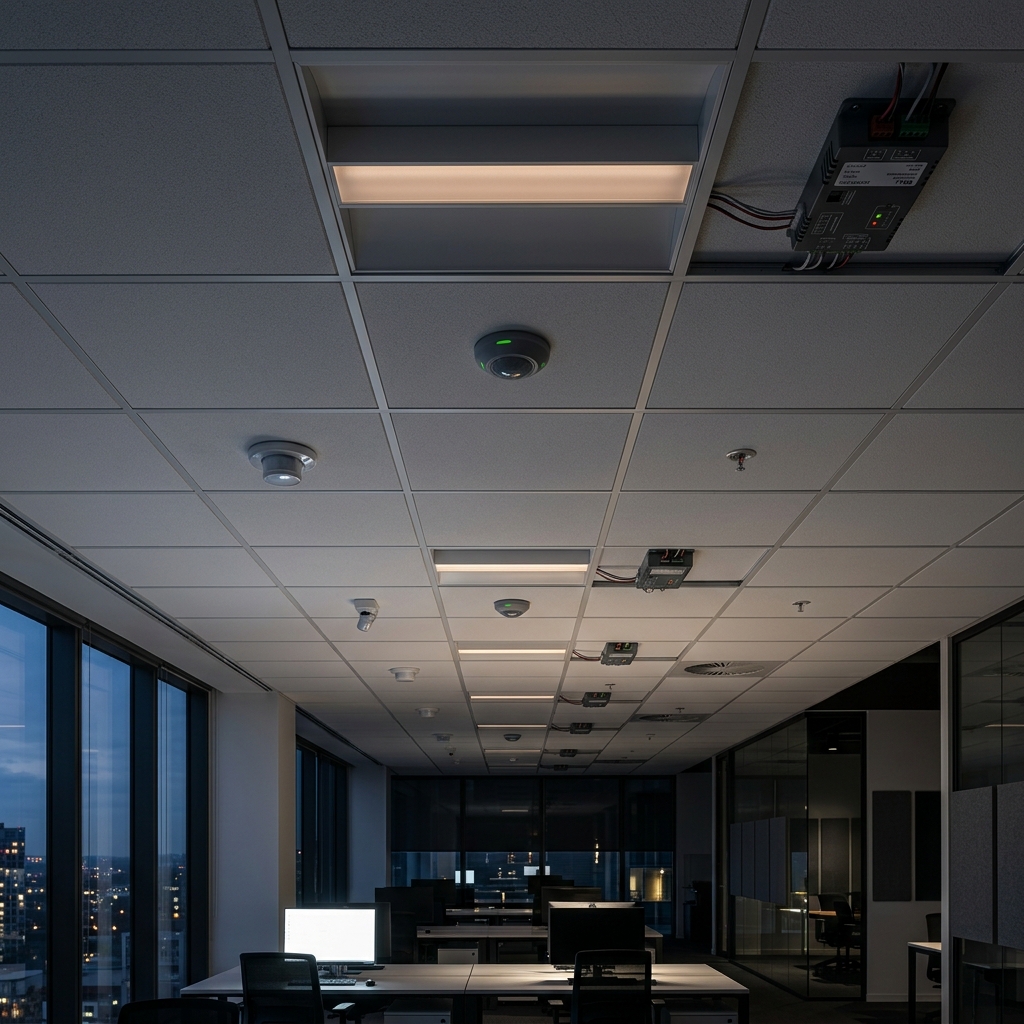

DALI vs. 0-10V: Choosing the Right Lighting Control Protocol

The architect wants tunable white lighting in the boardroom. The energy code demands automatic shutoff and daylight harvesting. The owner wants it all for the price of toggle switches. Welcome to the lighting controls specification - where the protocol you choose defines the project's flexibility, cost, and code compliance for the next 20 years.

Why Lighting Controls Matter More Than Ever

Modern energy codes - ASHRAE 90.1-2013 and NECB 2015, as modified by Ontario's SB-10 - have moved far beyond simple on/off switching. Today's lighting control requirements and common options include:

• Automatic shutoff: Occupancy sensors or time scheduling, depending on space type
• Daylight responsive controls: Automatic dimming in daylight zones beside windows (depth set by window head height)
• Demand response capability: Optional ability to reduce lighting power on a utility signal (not required by ASHRAE 90.1-2013)
• Scheduling: Time-based automatic on/off where occupancy sensors are not used
• Task tuning: Ability to permanently reduce light levels below design maximum

Meeting these requirements demands a reliable dimming protocol. The two dominant contenders in commercial construction are DALI (Digital Addressable Lighting Interface) and 0-10V analog dimming.

The Head-to-Head Comparison

When to Specify DALI

DALI's strengths emerge in spaces that demand flexibility and granular control:

DALI's killer feature is software-based rezoning. When the tenant reconfigures cubicles into private offices, the lighting zones can be remapped in software - no electrician, no rewiring, no permit. For a 0-10V system, the same change requires opening ceilings and pulling new control wires.

DALI-2 and D4i: The Latest Evolution

DALI-2 (IEC 62386 Ed. 2) introduces standardized device interoperability - any DALI-2 driver works with any DALI-2 controller, eliminating vendor lock-in. D4i extends DALI-2 with integrated sensors and power metering inside the luminaire, enabling fixture-level IoT without additional wiring.

When to Specify 0-10V

0-10V remains the right choice when simplicity and cost are paramount:

• Warehouses and industrial: Large open spaces with uniform lighting - no need for individual fixture control
• Corridors and stairwells: Simple on/off with occupancy dimming - 0-10V with a sensor is sufficient
• Budget-constrained projects: When the owner's priority is code compliance at minimum cost
• Retrofit projects: When existing conduit can't accommodate additional DALI bus wiring

Sensors, a DALI bus and simple 0-10V dimming in one floor

A typical office floor, not a design. Savings are the article’s indicative ranges.

Parts

1. 1

   0-10V in the corridor: analog, one-way, polarity-sensitive; all fixtures on the wire dim together; simple on/off with occupancy dimming is enough here.

2. 2

   DALI bus: digital, two-way, two wires of either polarity; each driver has a unique address, up to 64 control gear per bus (plus 64 control devices in DALI-2).

3. 3

   Occupancy sensing: automatic shutoff; 20–30 % indicative savings in offices, washrooms and meeting rooms.

4. 4

   Daylight sensor: dims the perimeter row; 25–40 % indicative savings within about 4.5 m of the windows.

5. 5

   Perimeter row: its daylight zone is regrouped in software when the layout changes, with no rewiring.

6. 6

   Wall station: scenes and personal dimming (about 31 % average); tunable white needs two channels, native on DALI.

7. 7

   Lighting controller: software commissioning (addressing, grouping, scenes) can take several days per floor; budget for it.

• DALI bus
• 0-10V control pair
• Daylight
• Occupancy sensor coverage

Figure 1. Sensors, a DALI bus and simple 0-10V dimming in one floor

Energy Savings by Control Strategy

Tuning rows: average savings for institutional (task) tuning and personal tuning in the LBNL meta-analysis of lighting controls in commercial buildings (Williams et al., LEUKOS, 2012).

Common Specification Mistakes

• Mixing DALI-1 and DALI-2 devices - they can work together, but DALI version-1 did not standardize control devices (sensors, controllers) and had weaker interoperability testing
• Exceeding the 64-device DALI bus limit - each DALI bus supports 64 control gear addresses (plus 64 control devices in DALI-2). Larger zones need DALI gateways or multiple buses
• Not budgeting for commissioning - DALI systems require software commissioning (addressing, grouping, scene programming). This can take several days per office floor
• Forgetting emergency lighting integration - DALI can control emergency luminaires, but this requires dedicated DALI emergency drivers and careful bus architecture
• Specifying 0-10V for tunable white - tunable white (CCT adjustment) requires two control channels. DALI handles this natively; 0-10V needs double the control wiring
