Receptacle Layout: CEC Requirements & Design Tips

Receptacle layout may seem straightforward, but it's one of the most frequent sources of ESA inspection deficiencies. The CEC has specific, measurable rules — and most failures happen because the designer didn't know the edge cases.

CEC Rule 26-712: The Spacing Rule

The foundational rule for residential and commercial receptacle placement. In dwelling units, CEC Rule 26-712(d) requires:

In every room of a dwelling unit (except bathrooms, kitchens, and hallways), receptacles shall be installed so that no point along the floor line of any usable wall space is more than 1.8 metres (6 feet) from a receptacle.

What Counts as "Usable Wall Space"?

This is where most misunderstandings occur. Usable wall space includes:

• Any unbroken wall space 900mm (3 ft) or wider
• Space behind doors (when open)
• Fixed glass panels and sliding door walls (if no glass below 150mm)

Not considered usable wall space:

• Doorways and archways
• Fireplaces
• Floor-to-ceiling windows
• Fixed cabinetry/built-ins (depends on configuration)

Kitchen Receptacle Rules

Kitchens have the most complex receptacle requirements in the CEC. Key rules:

Counter Receptacles — Rule 26-712(e)

Requirement	CEC Rule	Detail
Counter spacing	26-712(e)	No point along counter more than 900mm from a receptacle
Each counter section	26-712(e)	Every counter space 300mm or wider needs a receptacle
Island/peninsula	26-712(e)	At least one receptacle per island or peninsula
Dedicated circuits	26-722(a)	Minimum 2 dedicated 20A small appliance circuits
GFCI protection	26-700(11)	All counter receptacles must be GFCI protected

The Split Receptacle Question

Traditionally, kitchen counter receptacles were split-wired (each half on a different circuit). The OESC still permits this but modern practice increasingly favors dedicated circuits with standard duplex receptacles, especially with the proliferation of AFCI requirements. Split receptacles require a handle-tie or 2-pole breaker per CEC Rule 26-722.

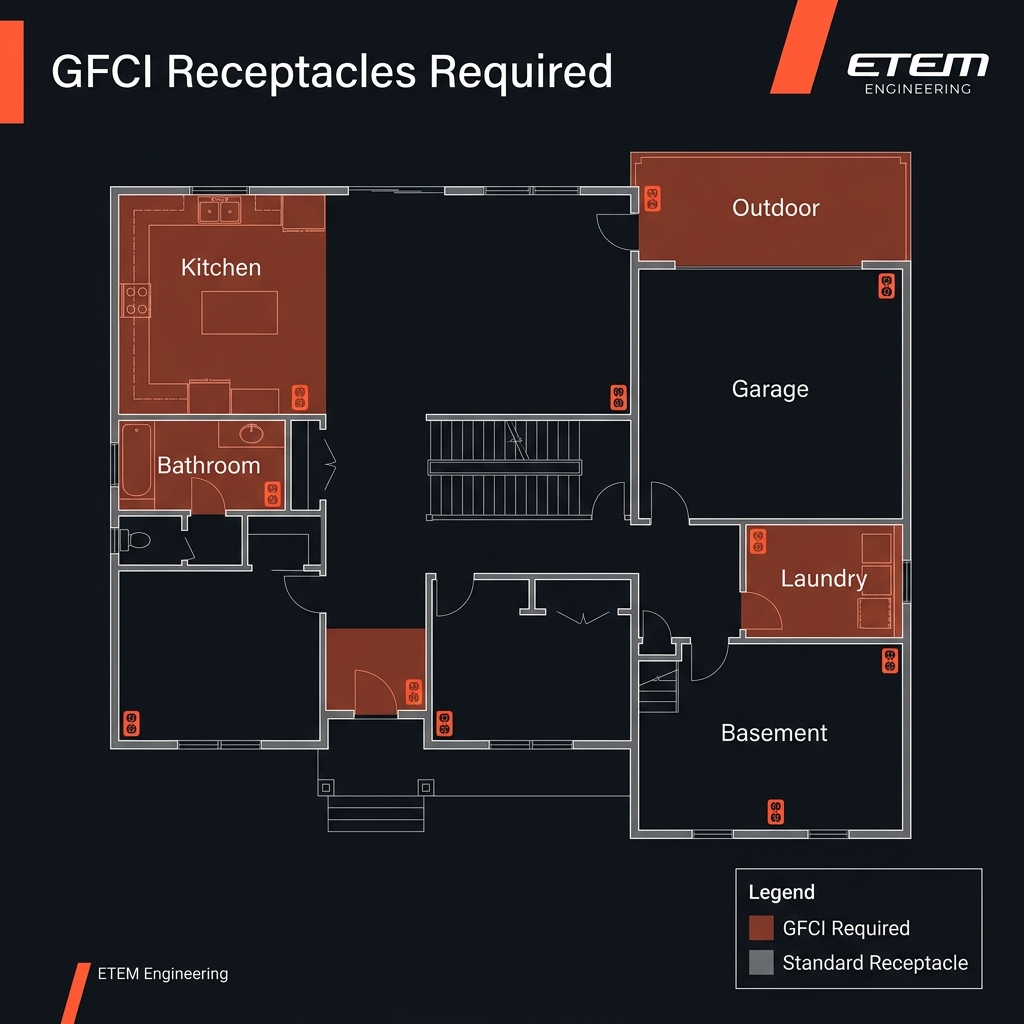

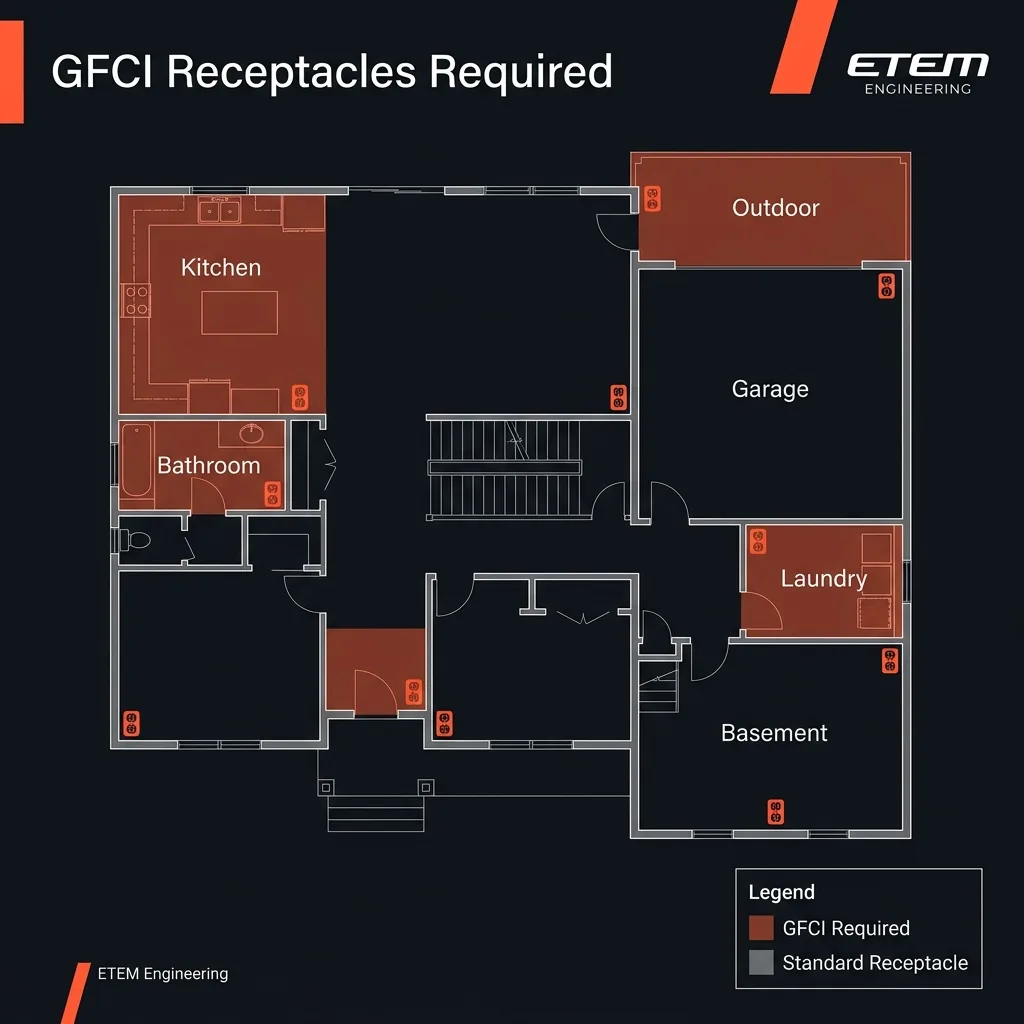

GFCI Requirements

Ground Fault Circuit Interrupter protection is mandatory in locations where water and electricity coexist. Per CEC Rule 26-700:

Location	GFCI Required?	Notes
Kitchen counter	✅ Yes	All receptacles within 1.5m of sink
Bathroom	✅ Yes	All receptacles
Washroom (commercial)	✅ Yes	All receptacles
Outdoor	✅ Yes	All receptacles
Garage	✅ Yes	All receptacles except dedicated appliance
Unfinished basement	✅ Yes	All receptacles
Pool/hot tub area	✅ Yes	All receptacles within 3m
Laundry	✅ Yes	Within 1.5m of sink
Sump pump	❌ No	Dedicated circuit, single receptacle

Wire Sizing: 14 AWG vs. 12 AWG

A common design question — when to use #14 vs. #12 copper:

Wire Size	Max Breaker	Ampacity (90°C)	Typical Use
#14 AWG	15A	25A	General lighting, bedroom receptacles
#12 AWG	20A	30A	Kitchen small appliance, bathroom, garage, outdoor
#10 AWG	30A	40A	Dryer, A/C disconnect, EV charger (Level 2 small)
#8 AWG	40A	55A	Range/oven, larger EV charger
#6 AWG	60A	75A	Sub-panel feeder, large EV charger

Ontario-Specific: The OESC generally follows CEC wire sizing rules, but always verify with the current edition. Some Ontario amendments affect specific applications, particularly around EV charging and dwelling unit load calculations.

Top 5 ESA Inspection Failures

Based on common field experience in Ontario:

• 1. Missing GFCI in bathroom or kitchen — the most common deficiency by far
• 2. Counter spacing violation — island or peninsula missing a receptacle
• 3. Outdoor receptacles without weather cover — requires "in-use" cover (not just flip-up) per Rule 26-700
• 4. Garage receptacle on wrong circuit — must be on separate circuit, not shared with lighting
• 5. Missing tamper-resistant receptacles — required in all dwelling units per CEC Rule 26-700(14)

Commercial vs. Residential Differences

The 1.8m rule (Rule 26-712) applies to dwelling units only. Commercial spaces have different requirements:

• Receptacle count is typically driven by furniture layout and load requirements
• Open-plan offices: typically 1 duplex per workstation
• Conference rooms: floor boxes + wall receptacles for AV
• Dedicated circuits for copiers, printers, and server equipment
• GFCI still required at sinks, outdoor, and wet locations
