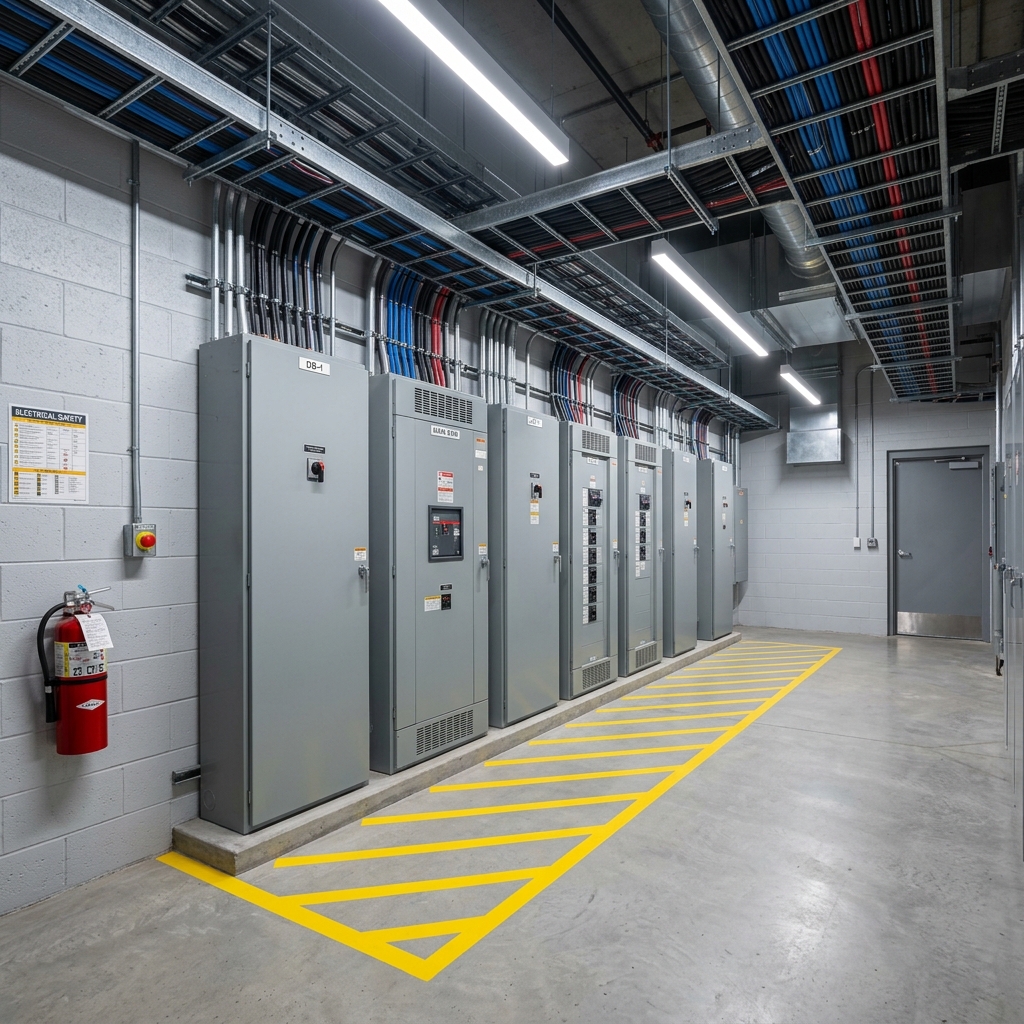

Electrical Room Design: The CEC Clearances That Kill Floor Plans
"The architect gave us a 6-8 ft room for a 1200A service." Sound familiar? Electrical rooms are where architecture meets code reality - and code always wins. Here are the CEC clearance requirements, door rules, and layout constraints that determine whether your electrical room is buildable or a red-tag waiting to happen.
Working Space Requirements (CEC Rule 2-308)
The CEC mandates minimum clear working space in front of all electrical equipment. These dimensions cannot be compromised - no pipes, ducts, or storage in the working space.
| Equipment nameplate rating | Minimum working space in front (Rules 2-308, 2-310) | Note |
|---|---|---|
| Below 1200A and 750V or less | 1.0m (3 ft) | Plus depth of any draw-out parts |
| 1200A or more, or over 750V | 1.5m (5 ft) | Plus depth of any draw-out parts |
| 1200A or more, or over 750V, if a person can leave without passing a potential failure point | 1.0m (3 ft) | Plus depth of any draw-out parts |
Critical dimension: For a typical 347/600V service (most commercial buildings in Ontario), you need 1.0m (3 ft) clear in front of equipment below 1200A - but at 1200A or more the Code requires 1.5m (5 ft) unless a person can leave without passing a potential failure point. This single requirement often doubles the room size architects planned.
Working Space Width & Height
| Dimension | CEC Requirement | Practical Note |
|---|---|---|
| Width | 1 m or width of equipment, whichever is greater | A 1.2 m wide switchboard needs at least 1.2 m clear width |
| Height | 2.0m minimum; 2.2m for switchboards, control panels and MCCs with bare live parts exposed at any time | Dropped ceilings, sprinkler pipes, and cable trays cannot reduce clearance below 2.0m |
| Depth | Per voltage table above | Measured from front face of equipment to nearest obstruction |
Egress Requirements (CEC Rule 2-310)
- Rooms and working spaces must have unobstructed means of egress in compliance with the Ontario Building Code
- For equipment rated 1200A or more, or over 750V, arrange egress so a worker can leave without passing the potential failure point
- Where that arrangement is not possible, Rule 2-310 requires increased working space clearance of at least 1.5m
- Doors or gates must be readily opened from the equipment side without a key or tool
- Door swing, width, panic hardware, and fire separation are normally finalized through the OBC and building-department and fire-department coordination
Working space and egress in an electrical room
A typical 347/600 V room in plan, not a specific project. Equipment approximately to scale.
Detail A: headroom
Clear height over the working space
Parts
1200 A or more (or over 750 V): 1.5 m in front, plus the depth of any draw-out parts; 1.0 m if a person can leave without passing a potential failure point. Rules 2-308, 2-310
Below 1200 A and 750 V or less: 1.0 m in front of the equipment, plus any draw-out depth. Rule 2-308
Width: 1 m or the width of the equipment, whichever is greater: a 1.2 m wide switchboard needs at least 1.2 m clear width.
Nothing in the working space: no pipes, ducts or storage; mechanical piping through the working space or the egress path must be rerouted.
Doors: readily opened from the equipment side without a key or tool; swing, width, panic hardware and fire separation are finalized under the OBC. Rule 2-310
Second exit: at 1200 A or more, arrange egress so a worker can leave without passing the failure point; where that is not possible, a 1.5 m working space is required.
Headroom (Detail A): 2.0 m minimum; 2.2 m for switchboards, control panels and MCCs with bare live parts exposed at any time.
- Required working space
- Egress path
- Door swing
- Wall
Dedicated Room & Vault Coordination
Large switchboards, transformers, service equipment, and utility metering often need a dedicated electrical space because of working clearances, egress, fire separation, ventilation, utility standards, and constructability. OESC Rule 26-350 applies specifically to electrical equipment vaults, not as a blanket trigger for every 600A room.
- Working-space protection - keep piping, ducts, storage, and trade equipment out of required electrical working clearances
- Utility, ESA and building-department coordination - service rooms, CT cabinets, and transformer spaces may have utility-specific requirements beyond the OESC minimums
- Fire separation - confirm OBC/NBC fire-resistance requirements for the specific equipment, occupancy, and room use
- Adequate ventilation - transformer rooms require ventilation sized for heat dissipation (confirm transformer losses and allowable temperature rise)
- Emergency lighting - required per OBC where the building classification calls for it; confirm room by room
Common Coordination Failures
| Problem | What Happens | Prevention |
|---|---|---|
| Architect sizes room too small | Equipment doesn't fit with required clearances - room must be enlarged during construction | Involve electrical engineer at schematic design stage |
| Mechanical runs pipes through E-room | Pipes in the working space or egress path violate the Code - they must be rerouted | BIM coordination meetings with clash detection |
| Single door on 1200A+ service | Possible Rule 2-310 issue - a second exit may be required if 1.5m clearance cannot be provided | Review door count during permit drawing phase |
| No floor drain or sump | Water ingress during pipe break damages equipment | Install recessed sump with moisture alarm |
Frequently Asked Questions
What are the CEC clearance requirements?
Min 1m for equipment below 1200A and 750V or less; 1.5m at 1200A or more or over 750V, unless a person can leave without passing a potential failure point. See our service entrance guide for sizing.
When is a dedicated electrical room required?
Dedicated electrical space is driven by equipment clearances, egress, fire separation, utility rules, and ESA, building-department and fire-department requirements. Rule 26-350 is a vault rule, not a blanket 600A room trigger. See our grounding guide.
What are the door requirements?
Rule 2-310 requires unobstructed egress and doors or gates that open from the equipment side without a key or tool. For equipment rated 1200A or more, or over 750V, egress must be arranged so workers can leave without passing the failure point, or the working space increased to 1.5m.
